PET Preform Neck Sizes Explained: 28mm vs 29/25 vs 30/25

Choosing the right PET preform neck finish affects cap fit, bottle sealing, and production line performance. A preform may look suitable for your bottle, but a small difference in thread design or sealing dimensions can cause problems during capping or filling. This is why you need to check the full neck finish specification before placing a bulk order.

This guide compares 28mm, 29/25, and 30/25 PET preforms, explains how to check cap compatibility, and outlines the details you should confirm before purchasing. It also introduces PET preform options from Enlightening Pallet Industry Co., Ltd., so you can connect the technical details with products for your packaging needs.







A PET preform neck finish includes the opening, threads, and sealing area that connect the bottle to its cap. Each part has a specific role. The thread holds the cap in place, while the sealing surface helps prevent leaks. Even a small dimensional difference can affect how the closure fits.



Neck Diameter, Thread Design, and Sealing Surface

The term "28mm" usually refers to a nominal neck size. However, it does not describe every detail of the neck finish. PCO 1810 and PCO 1881, for example, are different specifications associated with 28mm neck finishes.

The 29/25 and 30/25 designations refer to other neck finish systems. Their thread profiles, dimensions, and sealing details must be checked against the relevant technical drawings.

When you compare PET preforms, check these details:

Neck finish standard: Confirm the complete specification, not just the nominal diameter.

Thread dimensions: Check the thread profile and dimensions against the cap drawing.

Sealing surface: Confirm that the cap and neck form the required seal.

Preform weight and body dimensions: Match these to your bottle design and required capacity.



Why Similar Neck Sizes Are Not Always Interchangeable

Two preforms may look almost identical, yet their caps may fit differently. A cap that starts threading onto a neck may still have poor sealing performance or fail during automated capping. For this reason, ask for a technical drawing or sample before making a large purchase. A short trial with your actual cap and production equipment can reveal fit issues before they affect a full production run.





The best choice depends on your bottle design, cap system, and production line. The table below gives you a starting point, but the complete neck finish specification should guide the final decision.



Comparison Factor	28mm	29/25	30/25
Neck finish	May use PCO 1810 or PCO 1881	29/25 water bottle finish	30/25 finish
Typical applications	Bottled water and selected beverages	Mineral and drinking water	Water and selected beverages
Main check	Confirm the exact PCO standard	Confirm the 29/25 cap match	Confirm the 30/25 cap match
Before ordering	Test cap fit and line compatibility	Check neck dimensions and sealing	Check neck dimensions and sealing



28mm PET Preforms for Bottled Water and Beverages

A 28mm neck finish is widely used for bottled water and selected beverage packaging. The exact specification matters, especially when choosing between PCO 1810 and PCO 1881. Their neck designs differ, so you should confirm which one matches your existing cap and capping equipment.

For water bottling projects, PET Plastic Water Bottle Preforms offer options for bottle capacities from 200ml to 2L. The product page lists food-grade virgin PET and optional recycled PET material, subject to the intended application and relevant requirements.

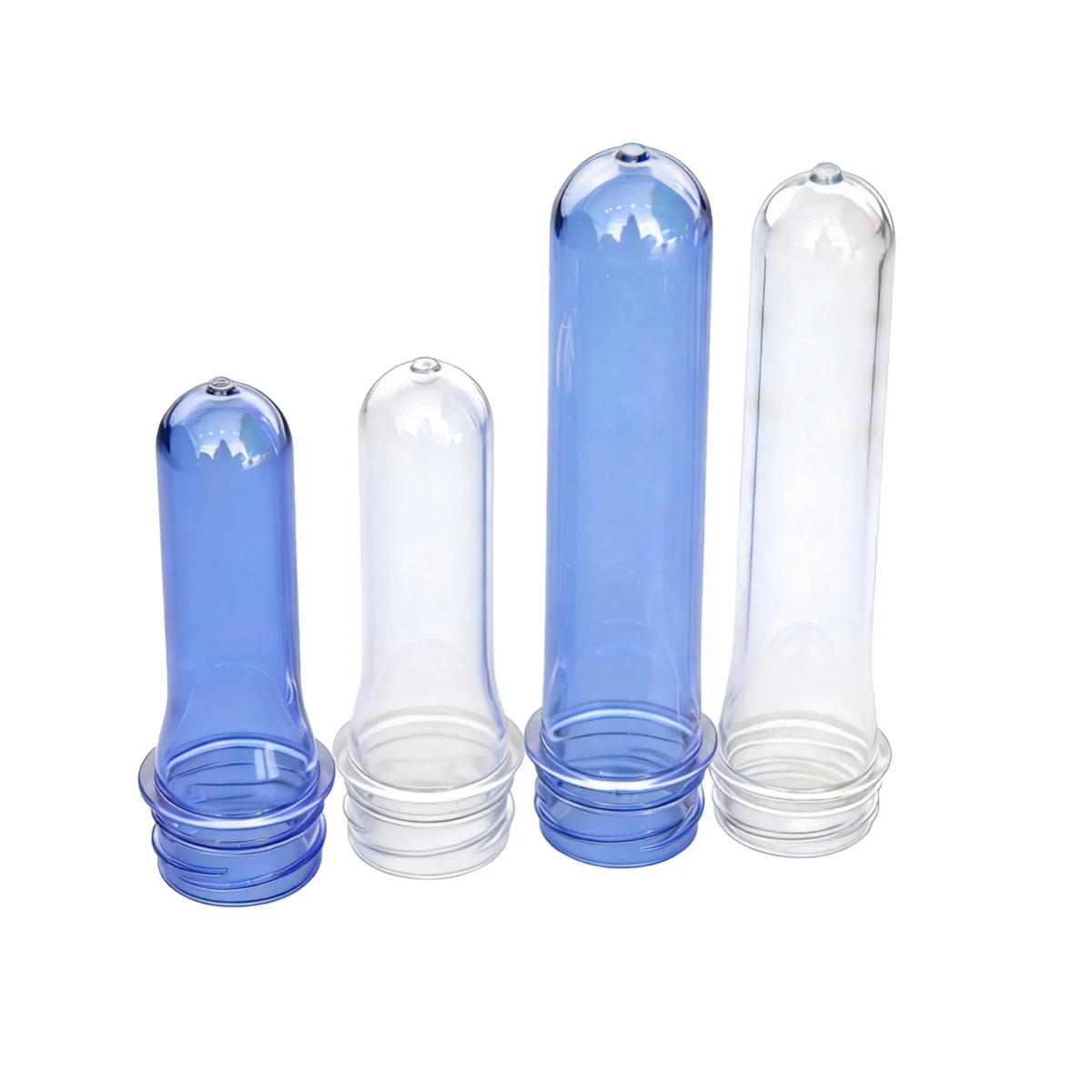

If you are sourcing preforms specifically for drinking water, PET Preform for Drinking Water Bottle lists PCO 1810, PCO 1881, and custom neck finish options. Confirm the required standard when requesting a quote.





29/25 PET Preforms for Mineral Water Bottles

The 29/25 neck finish is used in mineral water and other drinking water packaging. Its designation describes a particular neck finish system, so it should be treated as a complete specification rather than a simple 29mm diameter.

The High Transparency PET Bottle Preforms lists weight options from 12g to 43g and applications that include drinking water, mineral water, juice, and other beverages.

If bottle clarity is a key purchasing factor, check the material details and sample appearance. Also confirm the preform weight against your bottle design. A clear preform alone does not determine the appearance or performance of the finished bottle.



30/25 PET Preforms for Water and Beverage Packaging

A 30/25 neck finish is another option for water bottle production. The correct choice depends on the closure system already used at your plant, along with the bottle capacity and molding requirements.

The 30mm PET Preform for Water Bottles is relevant to buyers evaluating this neck finish. Before ordering, confirm the exact neck dimensions, preform weight, and compatibility with your cap and production line.

A practical rule: Choose the neck finish that matches your packaging system first. Then select the preform weight and body dimensions for the required bottle capacity.







After narrowing down the neck finish, check how it works with the rest of your packaging system. A correct fit helps reduce capping problems, leakage, and production interruptions. The preform must also suit your bottle design and blow molding process.



Match the Preform With Your Existing Bottle Cap

Start with the cap specification. Compare the neck thread, sealing surface, and key dimensions with the preform drawing. If you already use a particular cap in production, provide its technical details to the preform manufacturer.

A sample test is also useful. Check whether the cap threads on smoothly, reaches the correct closing position, and forms the required seal. For carbonated beverages, pressure resistance and closure performance need extra attention.



Check Blow Molding and Filling Line Requirements

The neck finish is only one part of the selection process. Preform dimensions, weight, and body design also affect the finished bottle.

Before ordering, confirm that the preform suits your blow molding mold and production settings. Check the neck handling and capping requirements on your filling line as well. These details are especially relevant when replacing an existing preform with a new specification.

Enlightening Pallet Industry Co., Ltd. lists several PET preform neck options in its PET preform product range. You can provide your bottle drawing or current preform sample to help identify the closest match.





A clear specification helps both you and the manufacturer avoid errors. Before approving a large order, prepare the information needed to confirm the product, test samples, and set acceptance criteria.



Confirm the Specification and Preform Weight

Your purchase request should include the neck finish standard, preform weight, bottle capacity, color, and intended application. A bottle drawing or existing sample can help clarify details that are difficult to describe in an email.

Weight also deserves attention. A lighter preform may reduce material use, but the final bottle still needs to meet your strength and performance requirements. The right weight depends on the bottle shape, wall distribution, filling conditions, and transport needs.



Test Samples Before Mass Production

Use sample preforms to check cap fit and run a blow molding trial. Inspect the finished bottles for appearance, dimensions, wall distribution, and sealing performance.

You should also agree on the key quality checks before production starts. These may include preform weight, neck dimensions, appearance, and batch consistency. Enlightening Pallet Industry Co., Ltd. provides information about its manufacturing background, while its company quality information describes its quality management and testing facilities.

Ask for the inspection records relevant to your order and target market. This gives you a clearer basis for approving samples and checking delivered goods.





Enlightening Pallet Industry Co., Ltd. offers PET preforms for different bottle neck specifications and packaging needs. Its product range includes 28mm, 29/25, and 30/25 options, so buyers can compare suitable products based on their existing packaging systems.

For bottled water production, start with the 28mm PET Plastic Water Bottle Preforms or the PET Preform for Drinking Water Bottle. If your current cap uses a 29/25 finish, review the High Transparency PET Bottle Preforms. For a 30/25 system, see the 30mm PET Preform for Water Bottles.

The company was established in 2000 and has experience in plastic product manufacturing. Its broader product range includes plastic pallets, pallet boxes, crates, and other industrial plastic products. For PET preform buyers, the next step is to confirm the exact neck finish, weight, and material requirements for the intended bottle.

If you are planning a new order or changing your current specification, contact Enlightening Pallet Industry Co., Ltd. with your bottle capacity, neck finish, target weight, and estimated order quantity. These details help the sales team identify a suitable option and clarify sample and bulk-order requirements.
