Stackable Water Bottle Storage Rack
●MOQ:10pcs（4 pockets×4 layers）
●Lead time (days)：15-30
●Quantity (pieces)：100000 / week
●ODM/OEM: Available
Enlightening Pallet Industry Co.,Ltd is one of the most professional stackable water bottle storage rack manufacturers and suppliers in China. Welcome to wholesale hot sale products at competitive price from our factory. Contact us for more cheap products.
wholesale water bottle rack descriptions

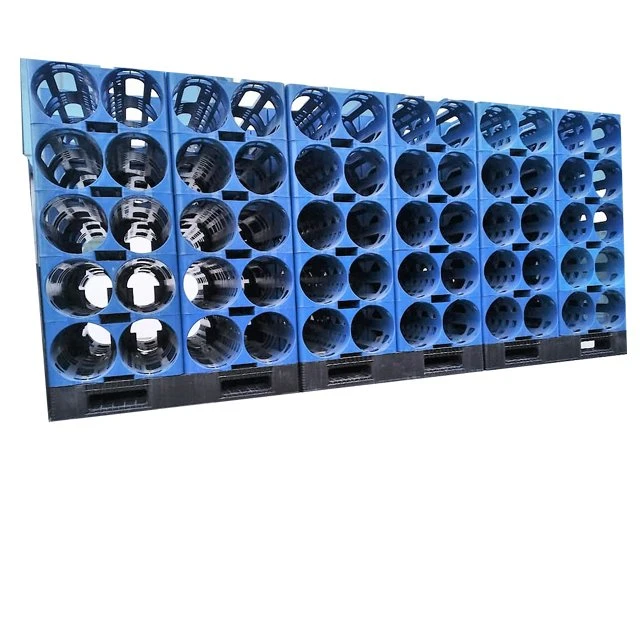

Made in our factory from high-density polyethylene (HDPE), this stackable water bottle storage rack (WR-1210) features a multi-layer vertical stacking design that saves warehouse space. Each set holds 32 five-gallon water bottles. It is widely used for storage and transport in drinking water plants and distribution centers. As the manufacturer, we support customization for special needs and branding requests.
Products specifications
| Parameter | Details |
| Model | WR-1210 |
| Overall Dimension | 1200 × 1000 × 1370mm (L×W×H) |
| Base Pallet Size | 1000 × 600 × 300mm |
| Capacity per Layer | 8 × 5-gallon (19L) bottles |
| Total Capacity | 32 bottles per unit (4 shelves + base) |
| Max Stacking Layers (loaded) | 4–6 layers |
| Max Stacking Layers (empty) | Up to 15 layers |
| Static Load Capacity | Up to 4,000 kg |
| Dynamic Load Capacity | Up to 1,000 kg |
| Material | HDPE (High-Density Polyethylene) |
| Weight | 12 kg |
| Forklift Compatible | Yes - 4-way entry (manual & electric pallet jack) |
| Color | Blue / Black (custom available) |
| Bottle Compatibility | 3-gallon & 5-gallon (11L / 18.9L / 20L) |
| UV Stabilizer | Yes |
| MOQ | 10 pcs(4×4) |
| Lead Time | 15–30 days |
What Makes This Water Bottle Storage Rack Different
Curved Slots Lock Bottles in Place
Each slot features a curved groove that holds the bottle exactly where it lands. Upper and lower layers seat tightly together, so bottles stay put - no sliding, no tipping, even during handling and transport.
One-Piece HDPE Build for Long-Term Stability
Injection molded from high-density polyethylene in a single piece. No rust, no moisture damage, and the structure holds firm under long-term multi-layer stacking. Built to last, not built to replace.
Four-Way Forklift Access
Forklift entry from all four sides. Works with manual and electric forklifts alike. Pick it up from any angle - no jockeying for position, no wasted time.
32 Bottles per Set, Minimal Floor Space
Four-layer design with integrated base pallet. Each set holds 32 five-gallon bottles - far more compact than a standard flat pallet. More product, less square footage.
For water bottle rack wholesale orders, we support factory-direct supply and customization based on your storage layout and branding needs.
Why Choose this Water Bottle Storage Rack?
Stackable Design, Half the Footprint
Floor stacking scatters bottles and makes inventory hard to track. These racks stack vertically - same footprint, multiple layers. Increase storage capacity without expanding your warehouse.
Individual Slots Keep Inventory Organized
Each bottle sits in its own slot - no rolling, no tipping. Count stock at a glance without moving a thing. Less sorting time, faster order dispatch.
Moisture-Proof HDPE Outperforms Metal in Wet Environments
Bottled water facilities run wet. Metal racks rust and degrade. HDPE won't - no rust, no peeling, no water absorption. Handles daily forklift use and cleans with a quick rinse.
Streamlined Loading for Faster Delivery
Loading is where delays happen. Bottles are pre-organized in the rack, so workers stage orders in advance and load straight from the rack - no sorting through loose bottles.
Bottled Water Storage Rack vs Traditional Floor Storage
| Feature | Stackable Water Bottle Storage Rack | Floor Stacking |
|---|---|---|
| Storage Method | Organized rack storage | Random bottle stacking |
| Space Utilization | Vertical stacking saves floor space | Requires more warehouse area |
| Bottle Stability | Keeps bottles fixed and stable | Bottles may roll or fall |
| Warehouse Management | Easy counting and sorting | Difficult inventory management |
| Handling Efficiency | Faster picking and loading | More manual handling |
Stackable Water Bottle Storage Rack Procurement FAQs
Q: What bottle sizes does this rack fit?
A: This rack is designed for standard 5-gallon (18.9 L) and 3-gallon (11 L) drinking water bottles - the two sizes you'll find in most bottling operations and distribution routes.
Q: What are the advantages of plastic racks compared with metal racks?
A: HDPE won't rust, shrugs off moisture, and weighs less - which also cuts shipping costs. Metal racks in humid environments are a different story: they rust, they deform, and maintenance costs keep climbing.
Q: Can the color or logo be customized?
A: Yes. As a factory-direct manufacturer, we support OEM/ODM customization including custom colors and logo printing. Standard options are blue and black.
Q: Can empty racks be stacked for container loading? How many layers?
A: Yes. Empty racks stack vertically to save container space and lower per-shipment freight cost. Contact us for the exact stacking quantity based on your order.
Q: Does the rack surface have anti-slip treatment?
A: Yes. Each bottle slot features an anti-slip inner wall design to keep bottles from sliding or tipping during transport.
Q: What certifications does the product have?
A: Manufactured under ISO 9001 quality management standards and compliant with export requirements.
