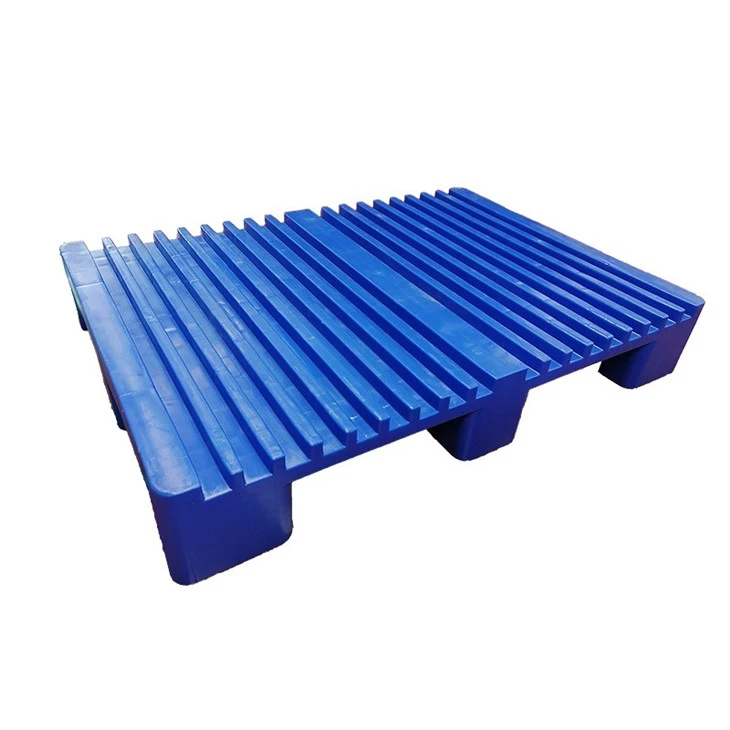

Heavy Duty 4way Entry Warehouse Storage Plastic Pallet For Printing Industry



Plastic printing pallets provide strong and stable support for various printing presses and material handling systems. Designed for continuous printing operations, this Heavy Duty 4way Entry Warehouse Storage Plastic Pallet For Printing Industry helps maintain efficient workflow by supporting paper stacks, printing materials, and finished products during production and storage.



Made from high-density polyethylene (HDPE), this plastic pallet for printing industry offers excellent durability, load stability, and resistance to moisture and chemicals. As an experienced plastic pallet manufacturer and supplier in China, Enlightening Pallet provides OEM and customized pallet solutions for printing factories, warehouses, and industrial customers.





Item	Specification
Material	Virgin HDPE
Application	Printing Industry, Warehouse Storage, Logistics
Entry Type	4 Way Entry
Structure	Heavy Duty Reinforced Design
Compatible Printing Machines	Heidelberg CX74, CD74, XL-74, 75, SX74, Roland 200, Roland 300, Roland 500, Rapid 74, 74G, Diamond 1000, Diamond 2000
Surface Design	Grooved Deck for Printing Operations
Load Capacity	Dynamic Load 1T-1.5T, Static Load 1.5T-4T
Rackable Design	Available with Steel Reinforcement
Color	Blue, Black or Customized
Certificate	SGS
OEM/ODM	Available
MOQ	100 pcs
Lead Time	15-30 Days
Production Capacity	100000 pcs/week



Code	Size(mm)	Weight(kg)	Load Capacity
8062	800*620*160	7.4	Dynamic load 1T, Static Load 1.5T
8065	800*650*160	7	Dynamic load 1T, Static Load 1.5T
8072	800*720*160	8.5	Dynamic load 1T, Static Load 1.5T
8265	820*650*150	6.3	Dynamic load 1T, Static Load 1.5T
8673	860*730*170	10	Dynamic Load 1T, Static Load 2T
8767	870*670*165	8	Dynamic load 1T, Static Load 1.5T
9672	955*720*150	9.8	Dynamic load 1T, Static Load 1.5T
1008	1000*800*170	13.8	Dynamic Load 1T, Static Load 3T
1050760	1050*760*175	11.9	Dynamic Load 1T, Static Load 2T
10675	1060*750*175	17	Dynamic load 1.5T, Static Load 4T
1108	1100*800*190	16.4	Dynamic load 1.5T, Static Load 4T
1109	1100*900*170	18.5	Dynamic load 1.5T, Static Load 4T
1208-170	1200*800*170	16.7	Dynamic Load 1T, Static Load 2T
12509-175	1250*900*175	19.5	Dynamic Load 1T, Static Load 4T
1470107-160	1465*1065*160	26.7	Dynamic Load 1T, Static Load 4T





1. Efficient Paper Change Design for Printing Operations

The heavy-duty storage plastic pallet has grooves for paper change without stopping the machine, and no grooves for turnover, so it is suitable for a variety of equipment.



2. Steel Reinforced Structure for Higher Load Capacity

The bottom of the printing pallet comes with steel bars, and they are rackable with steel, and the edges are densely arranged to increase impact deformation and increase the loading capacity of the pallet.



3. Rounded Corner Design for Better Impact Resistance

The rounded corner design makes the impact resistance of the pallet high, thus making it more durable compared to traditional pallets but also prevents users from collisions.



4. Durable Plastic Material for Long-Term Use

Made from high-quality HDPE material, the printing pallet provides excellent impact resistance, moisture resistance, and chemical resistance. Compared with wooden pallets, it offers more stable performance for repeated use in printing factories and warehouses.



5. Four-Way Entry Design for Efficient Handling

The four-way entry structure allows forklifts and pallet jacks to access the pallet from all sides, improving handling efficiency and flexibility in printing facilities, warehouses, and distribution areas.



6. Stable Support for Printing Operations

The reinforced deck structure provides stable support for paper stacks, printing materials, ink containers, and finished products, helping maintain safe and efficient material flow during continuous printing operations.



Printing Factory

Used for storing and handling printing paper, printed materials, ink containers, and other production supplies. The heavy duty plastic pallet provides stable support for continuous printing operations and improves material handling efficiency.



Factory Storage

Suitable for warehouse storage of raw materials, finished products, and industrial goods. The 4-way entry design allows easy forklift and pallet jack handling, making it suitable for internal logistics and factory material movement.





Printing pallets are designed for different press machine models and ground turnover operations in printing facilities worldwide. They are widely used for newspaper printing, packaging material printing, advertising product printing, and other printing applications.



With professional manufacturing experience and global service capability, Enlightening Pallet provides reliable plastic pallet solutions for printing companies in different countries. Our experienced team supports customers with product selection, customization, production, and delivery, ensuring efficient and stable supply for printing and logistics applications.
