Heavy Duty Assembled Large Capacity Modular Plastic Pallet

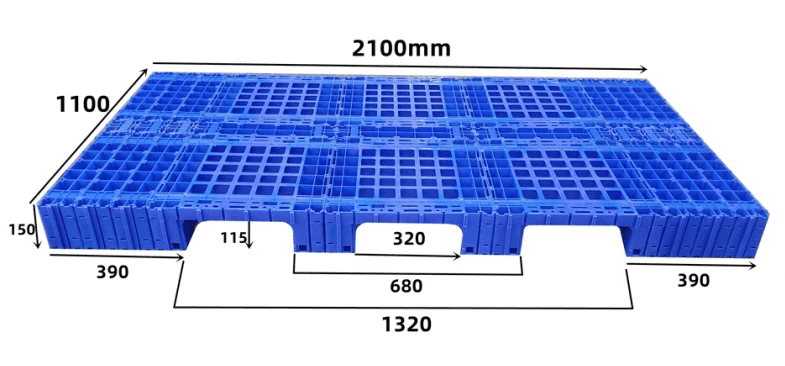

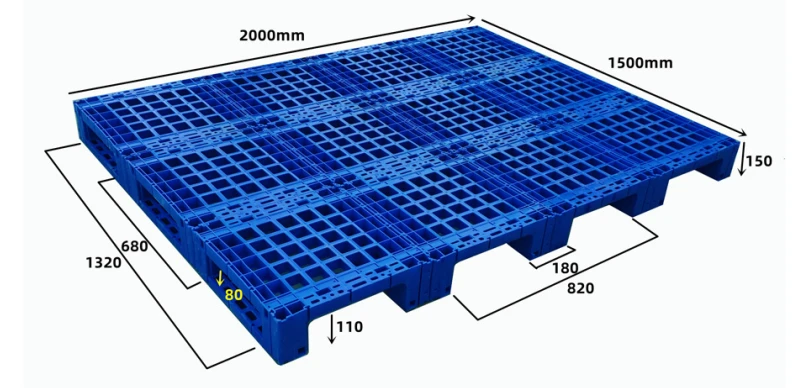

●1480×800×150MM;2000×1500×150MM;2100×1100×150MM
●Material: HDPE or PP
●Rackable: Yes
●Steel Tube: Optional
●ODM/OEM: Available
●Style: 3 Runners
●LOGO: Free Printing
●MOQ: 100 pcs
Enlightening Pallet Industry Co.,Ltd is one of the most professional heavy duty assembled large capacity modular plastic pallet manufacturers and suppliers in China. Welcome to wholesale hot sale products at competitive price from our factory. Contact us for more cheap products.
Description
Assembled from interlocking modules, this Heavy Duty Assembled Large Capacity Modular Plastic Pallet can be configured into oversized dimensions, making it ideal for the transport of bulk cargo. It features a ventilated grid-top deck and a triple-rib reinforced base, with optional steel reinforcements available for enhanced rigidity. Supporting four-way forklift entry, it provides stable and reliable support for demanding industrial handling and racking storage applications.
As a China-based manufacturer and wholesale supplier, Enlightening Pallet offers full customization services covering dimensions, materials, colors, and logo branding.
Products specifications
|
Parameter |
Specification |
|
Product Name |
Heavy Duty Modular Bulk Plastic Pallet |
|
Available Size 1 |
1480 × 800 × 150 mm |
|
Available Size 2 |
2000 × 1500 × 150 mm |
|
Available Size 3 |
2100 × 1100 × 150 mm |
|
Material |
HDPE (High-Density Polyethylene) / PP (Polypropylene) |
|
Deck Type |
Ventilated Grid Deck (Open Deck) |
|
Bottom Structure |
Triple-Runner Base (3 Stringers) |
|
Fork/Hand Truck Entry |
4-Way Entry |
|
Static Load |
4000 kg |
|
Dynamic Load |
1000 kg |
|
Steel Reinforcement |
Optional |
|
Color |
Standard Blue (Customizable) |
|
Logo |
Custom Printing Available |
|
OEM/ODM Service |
Supported |
|
Minimum Order Quantity (MOQ) |
100 Pieces |
|
Applications |
Industrial, Retail, Manufacturing, Pharmaceutical, Agriculture, Automotive |
Products features
Modular Sizing
Multiple molded sections assemble into larger pallet formats, ideal for extra-long, extra-wide, and non-standard cargo. The expanded support surface minimizes overhang and eliminates the need to straddle multiple individual pallets.
Heavy-Duty Support
A triple-runner base provides continuous support along the full length of the pallet. Optional steel reinforcements bolster key load-bearing zones, delivering a static load capacity of up to 4 tons.
Custom Solutions
Standard modules combine freely to create various oversized configurations-no new molds required. This approach cuts costs on custom projects and shortens procurement lead times.
HDPE/PP Material Options
HDPE performs reliably in cold storage down to -40°C. PP offers superior heat and chemical resistance. Both materials are washable, hygienic, and food-grade compliant.
Products Applications
Machinery & Auto Components
With its expanded deck surface, this modular pallet accommodates oversized parts such as machinery bases, welded frames, and body panels that exceed standard pallet dimensions. The platform can be sized to match the exact footprint of the load, minimizing overhang and enhancing stability during handling.
Industrial Loads
Ideal for sheet materials, profiles, bundled goods, textile rolls, and bulky packaging. The configurable deck provides broad-bottom support to prevent overhang and eliminate uneven weight distribution across the load.
In-Plant & Warehouse Transfer
Large assemblies move as a single unit between production lines, assembly areas, and storage zones. The unified structure removes the need to split loads across multiple pallets, streamlining internal logistics and simplifying load tracking.
Racking Projects
The three-runner base, combined with optional steel reinforcements, integrates with specified racking systems. Prior to deployment, confirm pallet orientation, beam spacing, and load distribution requirements to ensure safe and compliant storage.
Company Certifications and Quality Documents
Enlightening Pallet follows documented production, inspection and quality-control procedures for export orders. Relevant company certificates, material documents, production inspection records and model-specific load reports are available for buyer review according to the selected pallet and order requirements.
Buyers can request current document copies before placing an order. The applicable documents depend on the pallet material, destination market, testing requirement and final product configuration.
FAQ
Q: Can I choose the material?
A: Yes. HDPE works best for food-grade and cold-storage environments. PP offers extra heat and chemical resistance. We'll recommend the right option based on your application.
Q: Can I rinse it with water?
A: Absolutely. The open-grid panels drain quickly and rinse clean, and they're pressure-washer safe for fast, thorough cleaning.
Q: Do you support OEM or custom orders?
A: Yes. Our complete tooling and experienced team handle OEM/ODM runs, ensuring consistent quality even on large volumes.
Q: Is the Heavy Duty Assembled Large Capacity Modular Plastic Pallet recyclable?
A: Yes. The plastic is 100% recyclable, and we also offer fully recycled-material versions for eco-friendly sourcing.
Q: How does this pallet differ from a standard plastic pallet?
A: Unlike standard one-piece pallets, this model features a modular assembly structure that achieves much larger, non-standard dimensions. It is specifically engineered for oversized cargo that cannot be fully supported by conventional pallet footprints.
Q: What is the load capacity of the heavy duty assembled large capacity modular plastic pallet?
A: With an evenly distributed load, it supports up to 4,000 kg static load and 1,000 kg dynamic load.
Q: What is the minimum order quantity ?
A: The MOQ is 100 pieces. We offer tiered pricing-the more you order, the greater the discount.
